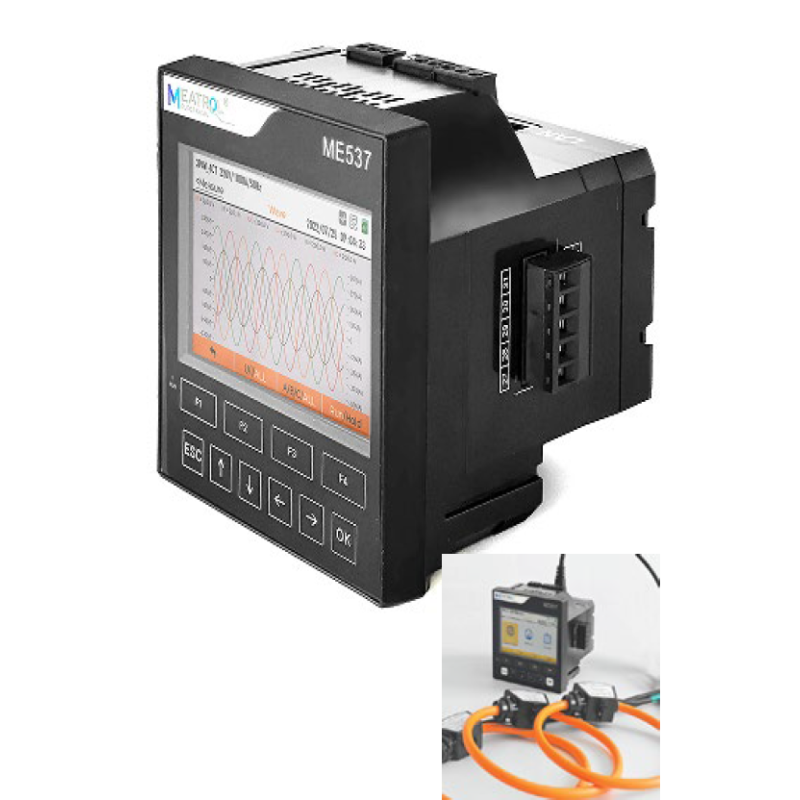

Meatrol - Rogowski - sub-meter
CET Submeter for power monitoring, using both modern Rogowski and old-style CTs
Security policy
Delivery policy
Return policy
-3.5 inch IPS display
Power supply: 85 - 305VAC/100 - 430VDC
Harmonic: 1-50th-32GB TF card memory
USB-DISK download data -
Communication: Ethernet Modbus-TCP, RS485-
Connect: Rogowski coil and 333mV Cts with VT up to 500kV-
Recommend current sensor:
100A TRC-24 (50mV/kA@50Hz)
300A TRC-24 (50mV/kA@50Hz)
600A TRC-36 (50mV/kA@50Hz)
1000A NRC-100 (85mV/kA@50Hz)
3000A NRC-150 (85mV/kA@50Hz)
6000A NRC-200 (50mV/kA@50Hz)
-Current clamp ST08: 10A(100mA～10A): ST08 (10A/320mV)
-Voltage,Current,Harmonic,Demand,Power factory,Frequency,Max/Min value,active reactive apparent power and energy,Unbalance,Angle.Voltage swell, Voltage sag, Waveform display, Event record .-Recorded data: Event type, Start time, Duration, Amplitude value, Voltage RMS 1/2 value, Voltage waveform
